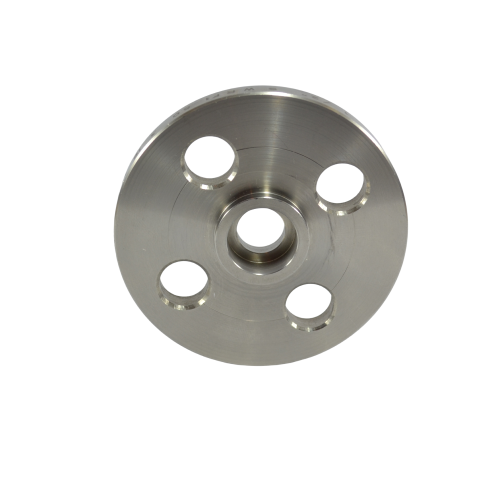

Inicio>Productos>Bridas>Socket Weld Raiced Face (SWRF)
Especificaciones técnicas
| Diámetro nominal/Sch | Serie | Calidad | Código | |
|---|---|---|---|---|
| 1/2" (21,30mm) Sch 80 (3,73mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-08 | CONSULTAR |
| 3/4" (26,67mm) Sch 80 (3,91mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-12 | CONSULTAR |
| 1" (33,40mm) Sch 80 (4,55mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-16 | CONSULTAR |
| 1-1/2" (48,30mm) Sch 80 (5,08mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-24 | CONSULTAR |
| 2" (60,30mm) Sch 80 (5,54mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-32 | CONSULTAR |
| 3" (88,90mm) Sch 80 (7,62mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-48 | CONSULTAR |
| 4" (114,40mm) Sch 80 (8,56mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-64 | CONSULTAR |
| 6" (168,30mm) Sch 80 (10,97mm) | 150.0 | AISI 316/316L | FO-BD-SWRF615-96 | CONSULTAR |
| Diámetro nominal/Sch | Serie | Calidad | Código | |
|---|---|---|---|---|
| 1/2" (21,30mm) Sch 80 (3,73mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-08 | CONSULTAR |
| 3/4" (26,67mm) Sch 80 (3,91mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-12 | CONSULTAR |
| 1" (33,40mm) Sch 80 (4,55mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-16 | CONSULTAR |
| 1-1/2" (48,30mm) Sch 80 (5,08mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-24 | CONSULTAR |
| 2" (60,30mm) Sch 80 (5,54mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-32 | CONSULTAR |
| 3" (88,90mm) Sch 80 (7,62mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-48 | CONSULTAR |
| 4" (114,40mm) Sch 80 (8,56mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-64 | CONSULTAR |
| 6" (168,30mm) Sch 80 (10,97mm) | 300.0 | AISI 316/316L | FO-BD-SWRF630-96 | CONSULTAR |
